Item Name: Stackable Home Energy Storage System
Rated Power: 5kWh-30kWh
Send Inquiry
Add To Inquiry
Description
Technical Parameters

1. All-in-One System: This Stackable Home Energy Storage System adopts full digital voltage and current double closed-loop control and advanced SPWM technology to output pure sine wave.

2. Four Optional Charge Modes: Only solar energy, utility priority, solar energy priority and mixed charging.

3. 99.9% Efficiency: Advanced MPPT technology, with efficiency up to 99.9%.

4. LCD Display: LCD screen design and 3 LED indicator lights dynamically display system data and operation states.

product-553-360

5. No Load Loss: ON/OFF rocker switch can control AC output, and with power saving mode function, it can reduce no-load loss.

6. High Safety: Intelligent adjustable speed fan is adopted for efficient heat dissipation and extended system life; Possessing multiple protection functions and 360 ° comprehensive protection, including short circuit protection, over voltage and under voltage protection, over load protection, back filling protection, etc.

7. Multifunctional: With lithium battery PV and utility activation function, support lead-acid battery and lithium battery.

8. 6000+ Cycle: LiFePO4 lithium battery,6000 cycling times, intelligent BMS system,safe and long service time.

9. Big capacity: Making daily life power consumption like in lack of electricity situation or emergency power consumption like in disaster situation guaranteed.

10. Wheeled Design: Stackable Home Energy Storage System with stacked and wheeled design, easy to reduce or expand the power capacity and convenient to move and transport.

product-553-315

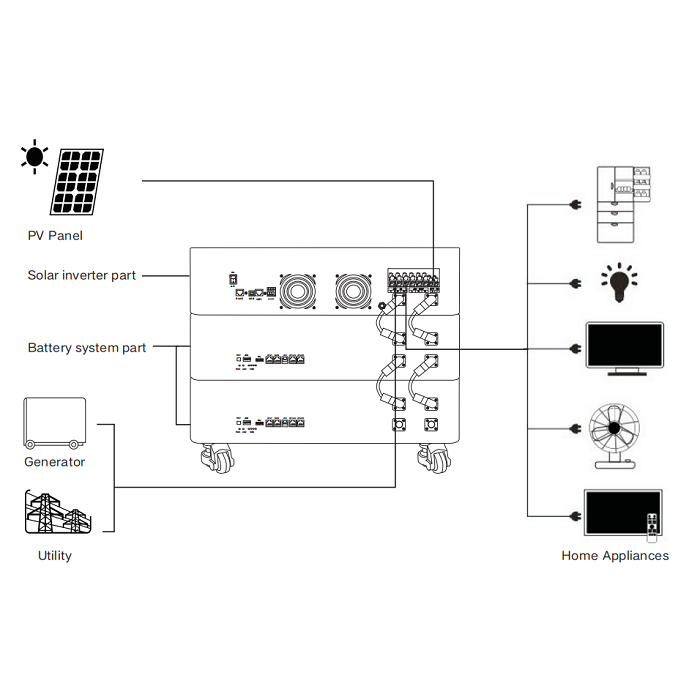

①

Solar inverter ON/OFF switch

⑪

Solar inverter DC input "+"

positive terminal for battery

②

Solar inverter RS485

communication port

⑫

Solar inverter DC input "-" negative terminal for battery

③

USB port

⑬

Battery RESET switch

④

WIFI port

⑭

Battery ADDRESS dip switch

⑤

Solar inverter dry contact port

⑮

Battery dry contact port

⑥

Solar inverter Cooling fan

⑯

Battery communication

port:RS485,CAN,RS232.

⑦

Overload protector

⑰

Battery state led indicator

⑧

AC input terminal

⑱

Battery "+" positive terminal

⑨

AC output terminal

⑲

Battery "-" negative terminal

⑩

PV terminal

⑳

LCD screen



Item Name

Stackable Home Energy Storage System

Rated Power

5kWh-30kWh
