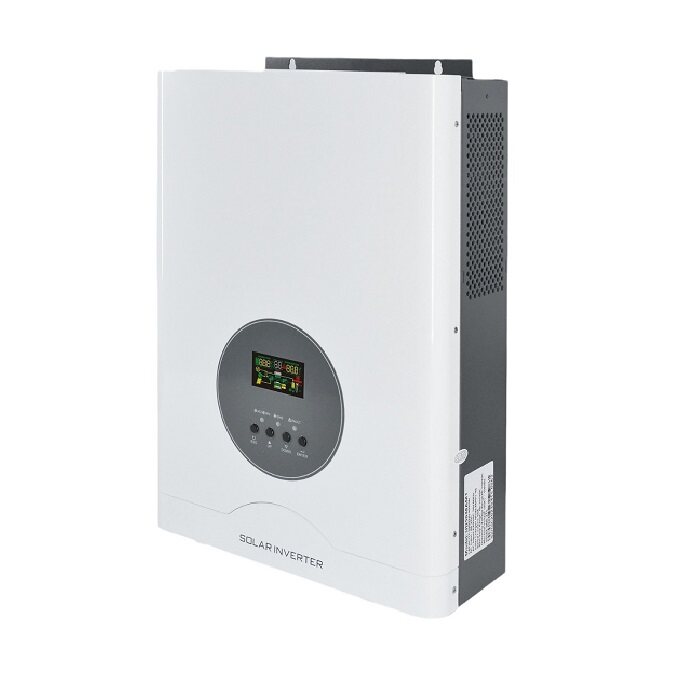

1. The waveform this off grid PV inverter converts is a pure sine wave, the same as what the utility converts. When using, the interference and impurities compatibility can be reduced. Most of the home appliances and precision appliances can be connected.
2. High Definition LCD Screen + Feedback Buttons
Large-size HD display + feedback buttons efficiently enhance the efficiency of human-computer interaction.
3. Fan Cooling
Thickened heat dissipation back plate, heat dissipation performance improved tube MOS close to the design of the heat dissipation plate, 60 ° C ambient temperature can be normal operation
4. Other Features:
- No load loss is small, less than half of the same power high-frequency machine.
- Pure sine wave output, it can adapt to different loads.
- Output short circuit protection function.
- Multiple parameters can be adjusted according to user needs.
- Optional solar controller with MPPT.
- Optional with BMS communication function.
- RS485 communication function is optional. Smart battery charger design for optimized battery performance.
- Built in Transformer, overload and Ultra-high voltage protection.
- Self-design PCB board and cooling system.
- Auto Restart when AC in recovering.
- High Efficiency Design &"Power Saving Mode"to Conserve Energy.
|
Input |
220VAC |
|
Output |
154-264VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode) |
|
Input Frequency |
50/60Hz±5% |
|
Rated Output Power |
5000W |
|
Output Voltage(N Mode) |
Same As Input Voltage At Normal Mode |
|
Output Frequency(N Mode) |
Same As Input Frequency At Normal Mode |
|
Output Voltage(U Mode) |
220VAC±10% |
|
Output Frequency(U Mode) |
50HZ±1% |
|
Waveform |
Pure Sine Wave |
|
Battery Type |
Lithium Battery |
|
Battery Voltage |
48VDC |
|
Charge Voltage |
54.8VDC |
|
Max PV Power Input |
3200W |
|
PV Voltage(MPPT) |
48V: MPPT60V-150VDC |
|
Max PV Open-Circuit Voltage |
48V: MPPT150VDC |
|
Recommended Vmp |
48V:MPPT60-105VDC |
|
Max PV Charge Current |
60A |
|
Max AC Charge Current |
29A |
|
Switch Time |
≤10ms(UPS Mode)/≤20ms(INV Mode) |
|
Peak load ratio |
(MAX)3:1 |
|
Standby Power Loss |
Ring Bull transformer |
|
32W |
|
|
Protect Function |
Main Electricity ：Input over-current without fuse switch protection |
|
Inverter mode：Overload protection,short circuit protection, low voltage protection |
|
|
Status Display |
Dot matrix screen plus LED display |
|
Through the page key can view,AC voltage,AC frequency, PV voltage,PV current, output voltage,Output frequency, battery voltage, load current and other parameters. |
|
|
LED display mains,charging status,inverter status,fault status. |
|
|
Alarm sound |
Buzzer according to the fault code is different, the alarm sound is different,with long and short sounds to distinguish. |
|
Operating Temperature |
-10℃~50℃ |
