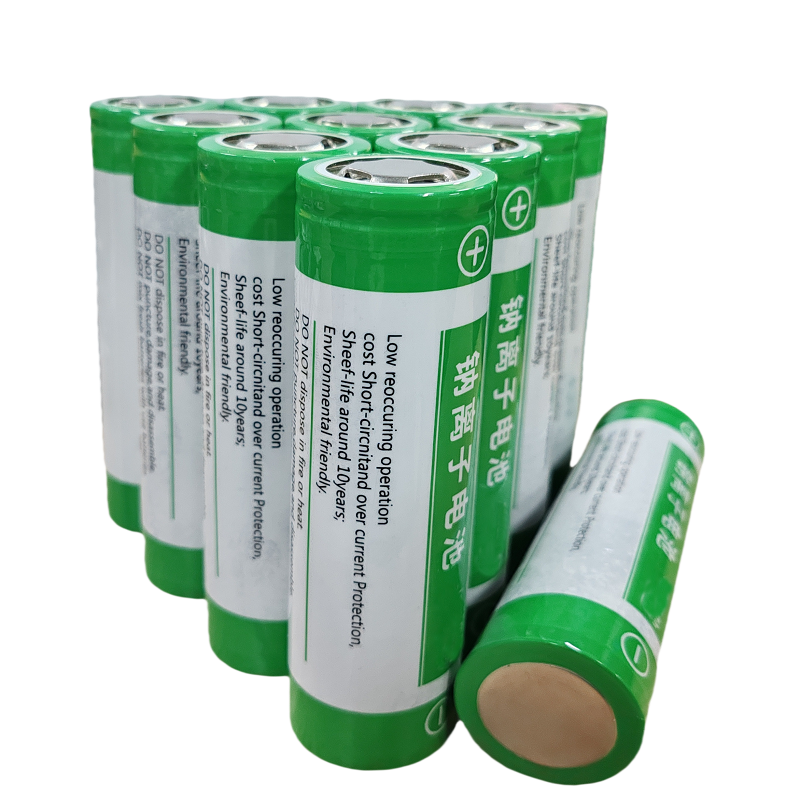

18650 Low Temperature Sodium Battery Cell

18650 Low Temperature Sodium Battery Cell

Rated Voltage: 3.1V
Rated Capacity: 1.3 Ah
Temperature Resistance: -40~60℃
Energy Density: ≥110Wh/100kg
Send Inquiry
Add To Inquiry
Description
Technical Parameters

product-800-540



Item

Data

Product Name 18650 Low Temperature Sodium Battery Cell

Nominal Capacity

1.30Ah@0.5C at 25.0±3.0℃

Nominal Voltage

≈3.1V

Max Voltage

3.95±0.05V

Min Voltage

1.50±0.05V, discharging to 0 without any influences

DC Resistance

≤25.00mΩ

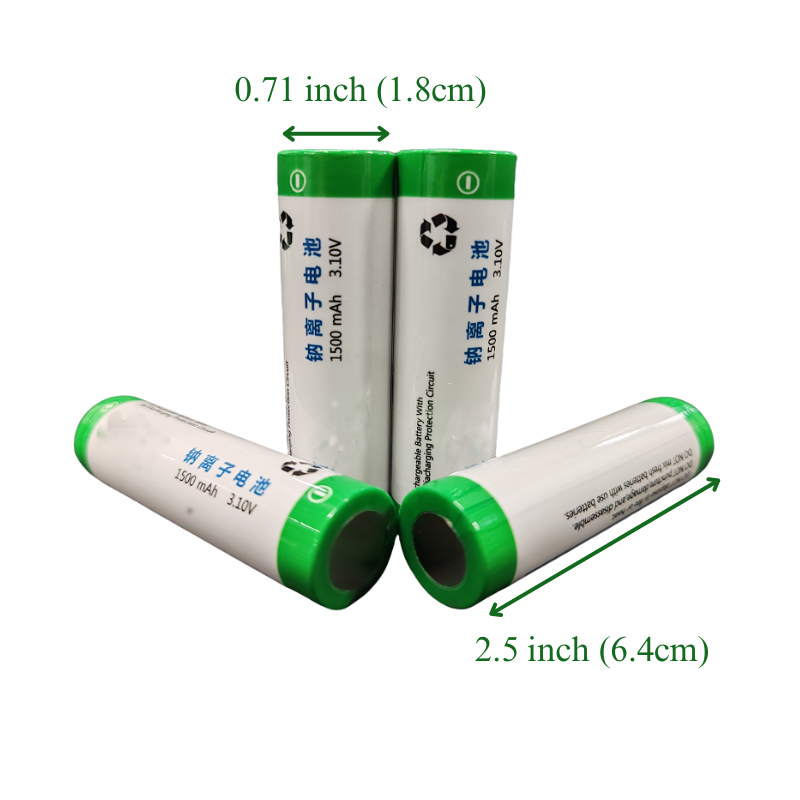

Dimension

Diameter: 18.4±0.1mm Height: 63.35±0.15mm

Energy Density

≥110.00Wh/Kg

Weight

37.00±2.00g

Instantaneous Max Discharge Current

10C≤30s

Maximum Continuous Current

3C



Magnification Performance

25℃ 1.0C discharge capacity/0.5C discharge capacity ≥ 98.00%;
25℃ 3.0C discharge capacity/0.5C discharge capacity ≥95.00%;
25℃ 5.0C discharge capacity/0.5C discharge capacity ≥90.00%.



Low Temperature Performance

-40℃ 0.5C discharge capacity/25℃ 0.5C discharge capacity>60.00%;
-30℃ 0.5C discharge capacity/25℃ 0.5C discharge capacity>75.00%;

-20℃ 0.5C discharge capacity/25℃ 0.5C discharge capacity>85.00%;
-10°C 0.5C discharge capacity/25°C 0.5C discharge capacity>90.00%.

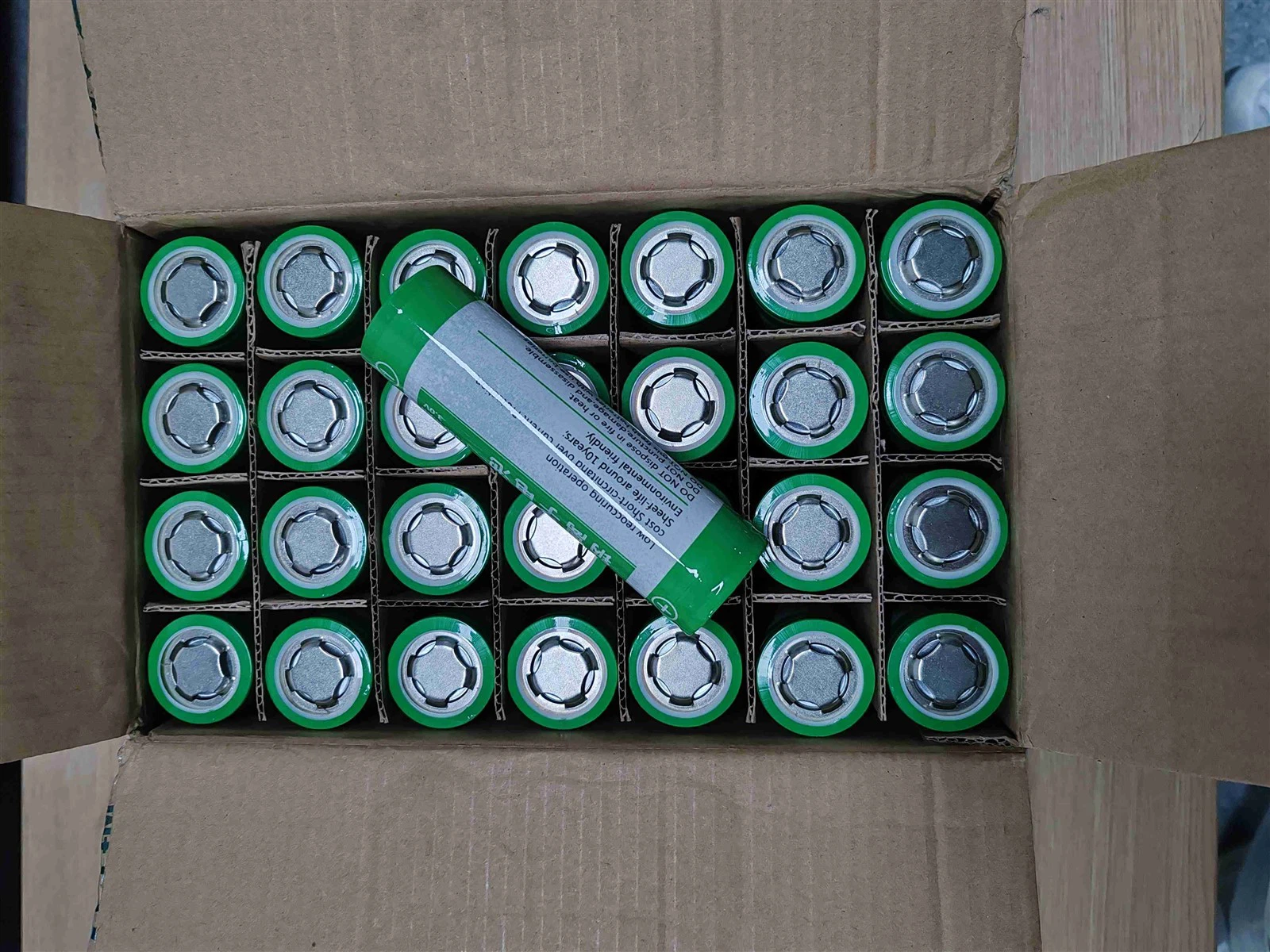

product-4064-3048



Electrical Performance of 18650 Low Temperature Sodium Battery Cell



No. Items Conditions Criteria
1 0.2C Discharge Charge the cell with standard charge mode,rest for 0.5h,then discharge with 0.2C until the voltage is 2.0V.Test can repeat 3 times until meets the requirements. 0.2C Discharge
Capacity≥1300mAh
3 Rate Discharge Charge the cell with standard charge mode,rest for 0.5h,then discharge with 3C until the voltage is 2.0V. 3C Discharge Capacity
≥90%Cmin
4 High
Temperature
Discharge
Under the temperature of 25±2℃,after charging the cell with standard charge mode,then put the cell into the constant temperature and humidity oven with 55±2℃ for 2h,then discharge with 0.5C to 2.0V. 55℃ Discharge
Capacity≥95%Cmin
5 Low
Temperature
Discharge
Under the temperature of 25±2℃,after charging the cell with standard charge mode,then put the cell into the constant temperature and humidity oven with -20±2℃ for 8h,then discharge with 0.5C to 2.0V. -20℃ Discharge
Capacity ≥85%Cmin

6 Ultra-low
Temperature
Discharge
Under the temperature of 25±2℃,after charging the cell with standard charge mode,then put the cell into the constant temperature and humidity oven with -40±2℃ for 8h,then discharge with 0.5C to 2.0V. -40℃ Discharge
Capacity ≥55%Cmin

7 Storage
Characteristics
Charge the cell with standard charge mode,then rest under the temperature of 25±2℃ for 28d and then discharge with 0.5C to 2.0V.Charge the cell at 25±2℃ with standard mode,and then
discharge with 0.5C to 2.0V.
Retention Capacity ≥90%Cmin
Recovered Capacity ≥95%Cmin
